Cut and switch angles in the Angle Viewer

After you create a multicam clip, you can watch all angles simultaneously in the Angle Viewer while switching or cutting to different angles in real time. This allows you to cut an entire movie as if it were live, and then fine-tune your edits in the Timeline just as you would for any other project.

The Angle Viewer is both a display and an interactive interface for making quick cut and switch decisions as you play back your multicam clips and projects. Angles appear in banks of 2, 4, 9, or 16 angles.

Angle Viewer showing active angle highlighted in yellow

Play back a multicam clip in the Angle Viewer

  1. To open the Angle Viewer, do one of the following:

    • Choose Window > Viewer Display > Show Angles (or press Shift-Command-7).

    • Choose Show Angles from the Viewer Options pop-up menu in the top-right corner of the Viewer.

    If you’re viewing a multicam clip in the Browser, you have the option to show the Event Viewer next to the Viewer. To show multicam angles in the Event Viewer, do one of the following:

    • Choose Window > Event Viewer Display > Show Angles.

    • Choose Show Angles from the Viewer Options pop-up menu in the top-right corner of the Event Viewer.

  2. Use the skimmer or the playhead to play back a multicam clip in the Browser or the Timeline.

    The Angle Viewer appears in the upper part of the Final Cut Pro window.

    Angle Viewer displaying angles of multicam clip selected in Browser

Cut and switch angles in the Angle Viewer

You can cut and switch angles “on the fly” (while playing back your project), or you can skim to specific points in the Timeline and then cut and switch. You can also use a combination of those two methods.

  1. To open the Angle Viewer, choose Window > Viewer Display > Show Angles (or press Shift-Command-7).

  2. Add the multicam clip you want to cut and switch to the Timeline.

    Note: The cut and switch feature works on Timeline clips only.

  3. Do one of the following:

    • Position the playhead and press the Space Bar to play back the multicam clip.

    • Skim the Timeline to the frame where you want to cut and switch to a different angle.

  4. In the Angle Viewer, move the pointer over the angle that you want to switch to.

    As you move the pointer over the angles in the Angle Viewer, the pointer changes to the Blade tool, indicating that a cut (and switch) will occur when you click.

    Angle Viewer shown with active angle highlighted and pointer switched to Blade tool
  5. Do one of the following:

    • To cut and switch: Click the angle you want to switch to. (Or press any number key to cut and switch to the corresponding angle of the current bank. For example, press 5 to cut and switch to angle 5 of the current bank.)

      In the Timeline, the current multicam clip is cut at the playhead position. The section of the clip to the right of the playhead is replaced with a new instance of the clip, with the angle you clicked as the active angle. A special through edit point appears at the Timeline playhead position. For more information, see Edit multicam clips in the Timeline and the Inspector.

    • To switch: Option-click the angle you want to switch to. (Or hold down the Option key and press any number key to switch to the corresponding angle of the current bank. For example, press Option-5 to switch to angle 5 of the current bank.)

      Note: The pointer changes to a pointing hand icon when you hold down the Option key, indicating a switch-only edit.

      In the Timeline, the multicam clip under the playhead changes to show the angle you switched to as the active angle.

    In either case, the Viewer switches to the angle you selected. The active angle is highlighted in yellow, blue, or green, depending on the switch mode you’re using. For more information, see “Switch video or audio separately,” below.

Switch video or audio separately

By default, Final Cut Pro switches the video and audio of a multicam clip at the same time. But you can set Final Cut Pro to switch the video and audio separately.

  1. To open the Angle Viewer, choose Window > Viewer Display > Show Angles (or press Shift-Command-7).

  2. To change the switch mode, do one of the following:

    • To enable video and audio switching: Click the left switch mode button in the upper-left corner of the Angle Viewer. This is the default setting.

      Angle Viewer shown with video and audio switching enabled
    • To enable video-only switching: Click the middle switch mode button. Only the video switches. The audio from the original angle remains active.

      Video-only switching button shown highlighted
    • To enable audio-only switching: Click the right switch mode button. Only the audio switches. The video from the original angle remains active.

      Audio-only switching button shown highlighted
  3. Do one of the following:

    • To cut and switch: Click an angle in the Angle Viewer.

    • To switch: Option-click an angle in the Angle Viewer.

If you selected the video-only or audio-only switch mode, blue highlighting indicates the active video angle and green highlighting indicates the active audio angle.

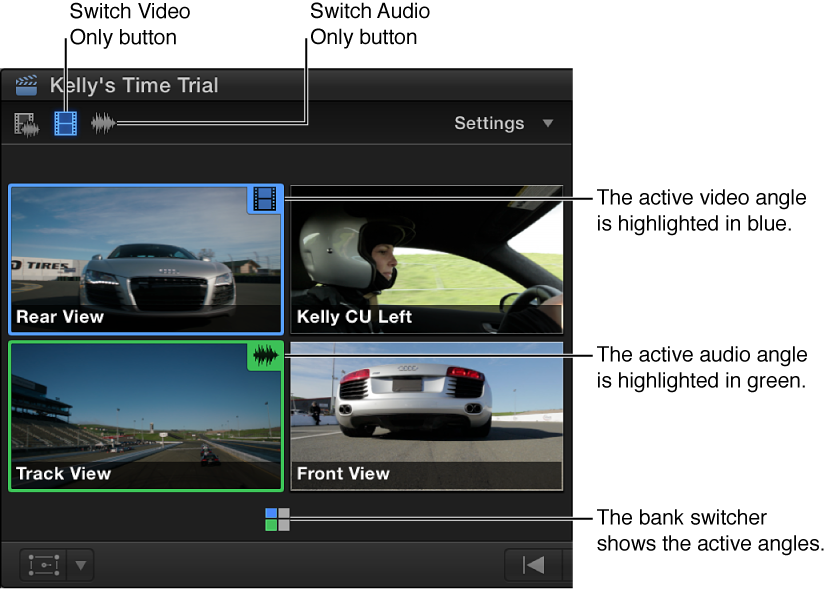

Angle Viewer showing active video angle highlighted in blue and active audio angle highlighted in green

Tip: With audio-only switching enabled, you can add audio components from inactive angles to the active angle or remove audio components from the active angle. Simply Option-Command-click an inactive angle to add its audio to the active angle. Or Option-Command-click an active angle to remove its audio. For more information, see “Example: Add or remove audio components in a multicam clip” in Multichannel audio editing examples.

View and navigate banks of angles

Depending on the Angle Viewer display setting you choose, you can show 2, 4, 9, or 16 angles at once. These sets of angles are known as banks. The bank switcher in Final Cut Pro is an efficient tool for displaying and navigating banks of angles in a multicam clip.

  1. To open the Angle Viewer, choose Window > Viewer Display > Show Angles (or press Shift-Command-7).

  2. Position the skimmer or the playhead over a multicam clip in the Browser or the Timeline.

    The bank switcher appears as a grid of squares at the bottom of the Angle Viewer. Yellow, blue, or green highlighting indicates the currently active angle.

    Bank switcher icon showing active angle
  3. In the Settings pop-up menu (in the upper-right corner of the Angle Viewer), choose the number of angles you want to display in each bank.

    Settings pop-up menu in Angle Viewer

    If the number of angles in your multicam clip exceeds the current Angle Viewer display setting, Final Cut Pro creates additional banks and displays them as separate grids of squares.

    Here are a few examples of different angle bank combinations:

    Three banks of four angles each, with third bank highlighted and last angle shown in yellow

    Three banks of 4 angles each, with the last angle in the third bank as the active angle, and the third bank as the currently displayed bank.

    One bank of sixteen angles, with last angle shown in yellow

    One bank of 16 angles, with the last angle as the active angle.

    One bank of nine angles shown active, and one bank of seven angles shown dimmed, with one angle in yellow

    One bank of 9 angles and another bank of 7 angles, with the first bank as the currently displayed bank.

  4. To navigate banks of angles, do any of the following:

    • To display a bank’s angles in the Angle Viewer: Click the bank switcher icon for the bank.

    • To display the previous bank: Press Option-Shift-Semicolon (;).

    • To display the next bank: Press Option-Shift-Apostrophe (’).

Show overlays in the Angle Viewer

For each angle that appears in the Angle Viewer, you can display video overlays showing timecode and either the clip name or the angle name.

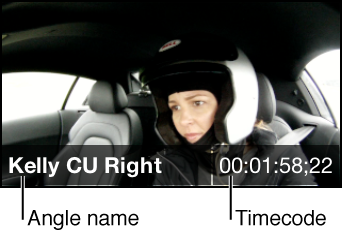

Angle name and timecode shown on angle
  1. To open the Angle Viewer, choose Window > Viewer Display > Show Angles (or press Shift-Command-7).

  2. To choose a display option, do one of the following:

    • To display timecode for the clips in each angle: Choose Timecode from the Settings pop-up menu in the upper-right corner of the Angle Viewer. (Choose Timecode again to turn off the timecode display.)

      Settings pop-up menu in Angle Viewer
    • To display the names of the clips in each angle: In the Settings pop-up menu, choose Display Name > Clip.

    • To display the name for each angle: In the Settings pop-up menu, choose Display Name > Angle.

    • To turn off display names: In the Settings pop-up menu, choose Display Name > None.

Adjust the Angle Viewer display

You can adjust the Angle Viewer display to suit your needs.

  • To adjust the number of angles in the Angle Viewer: In the Settings pop-up menu in the upper-right corner of the Angle Viewer, choose either 2 Angles, 4 Angles, 9 Angles, or 16 Angles.

    Angle Viewer showing nine angles
  • To adjust the size of the Angle Viewer and the main Viewer: Drag the boundary between them.

    Angle Viewer shown with smaller Viewer
    Angle Viewer shown with larger Viewer
  • To make the Angle Viewer a vertical column: Drag the boundary to the left, and drag the Final Cut Pro toolbar downward to expand the Viewer quadrant vertically. (This vertical column view is available only in the 2 Angles and 4 Angles views.)

    Angle Viewer shown as vertical column
